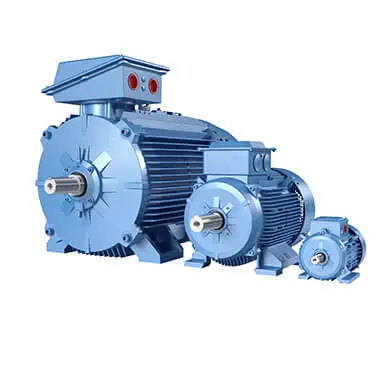

General Performance Motors
Frame sizes- 71 - 355
Motor type- M2BAX
Output power- 0.18 to 355 kW
Voltage 220 – 690 V
Efficiency class- IE2, IE3, IE4
• General performance motors are available off the shelf for fast delivery.
• There’s a wide range of options to choose from and most changes only take one or two days.
• Available in efficiency classes IE2 to IE4
• Series 62 or 63 bearings from dependable manufacturers.
• Smaller sizes have bearings that are lubricated for life.
• A class C3 paint system protects against tough conditions.
• Online tools make the motors easy to select and ensure fast access to datasheets and other information.
• Some standard designs are available from stock, while customer and application specific solutions are manufactured to order and can be tailored to meet specific needs.
• With our efficient logistics system we can quickly tailor motors to match your needs.

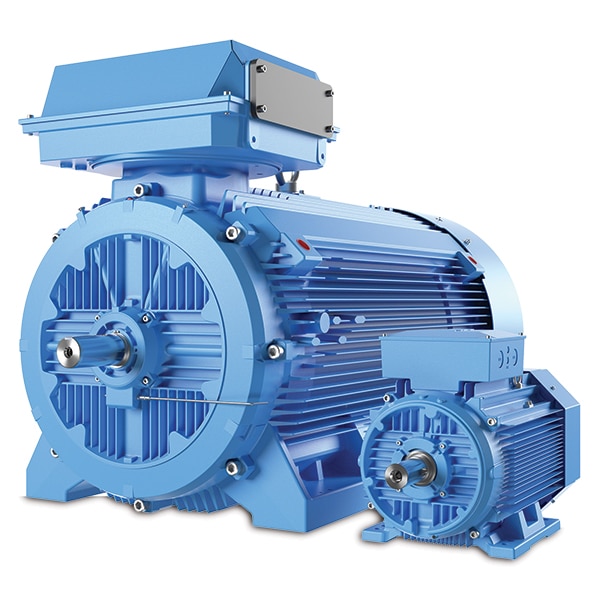

Process Performance Motors
Cast iron-- M3BP - IEC frame sizes 71 to 500
Aluminum-- M3AA - IEC frame sizes 56 to 250
Output power-- 0.12 to 1300 kW
Voltage-- 230 – 690 V
Effiency class-- IE2, IE3, IE4
• Modular construction enables easy modifications and customizing in production.
• Designed for DOL and VSD use.
• IP55 protection, IP66 as option.
• 63 series bearings for higher loadability.
• C3 paint system as standard, more options available.
• Highly adjustable terminal box.
• More precise control of speed and torque, tested with variable speed drives.
• Comply with Minimum Energy Performance Standards around the world.
• Global footprint and reach, combined with local presence and support wherever you are.

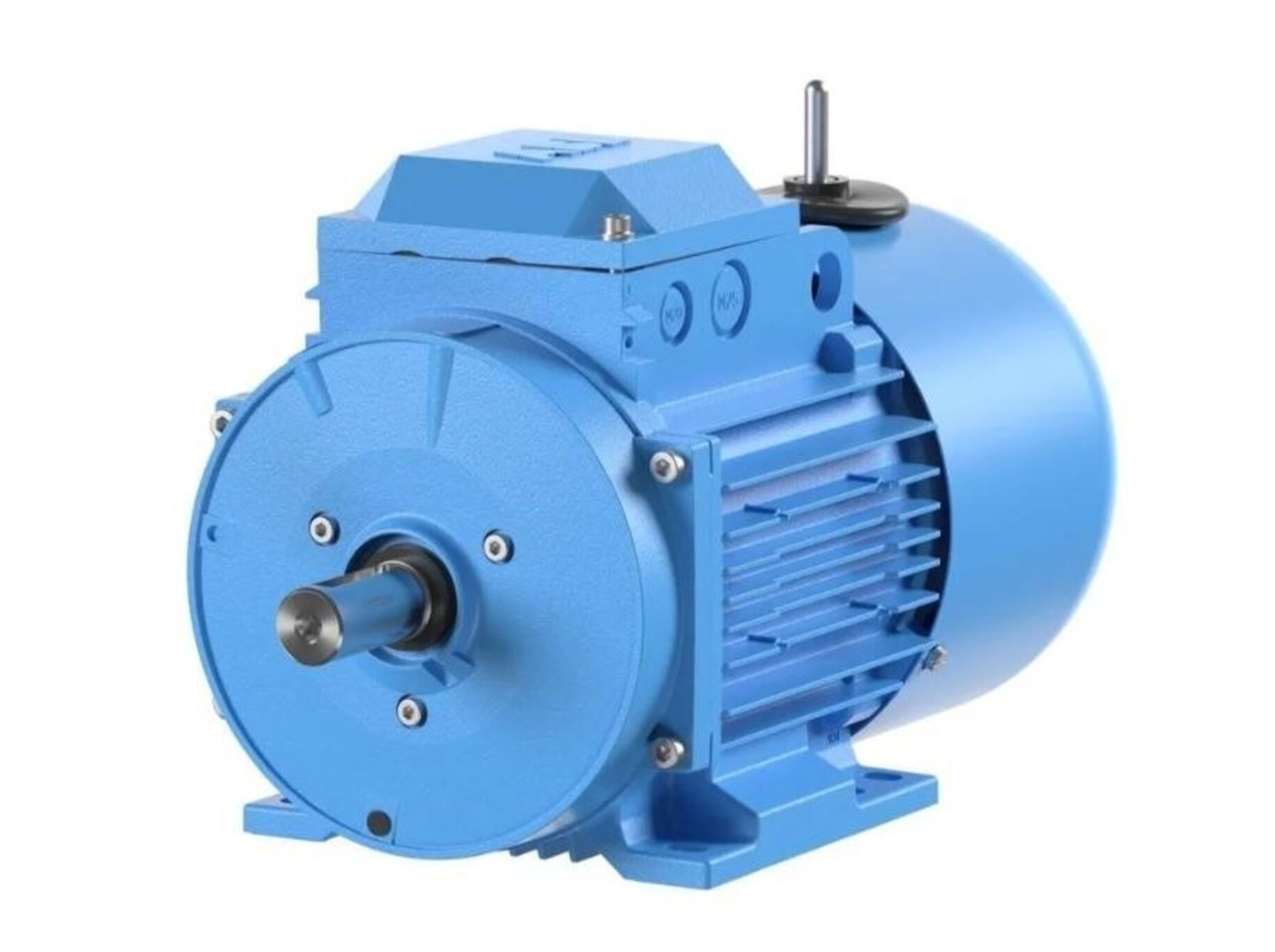

Brake Motors
Motor type-- Aluminium M3AA
Frame sizes-- 71-180
Output power-- 0.12 - 22 kW
Voltage-- 220 – 690 V
Frequency-- 50 Hz / 60 Hz
Supply-- DOL / VSD
Speed-- 2 – 6 poles
Efficiency-- IE2 and IE3
Brake type-- DC
Insulation class-- F
Protection type-- IP55
Ambient temperature-- -25°C - +40°C
Options-- Variety of options available
Country of Origin-- Europe
Certification-- CE, UKCA, UL
Motor features:
• Robust design.
• Proven reliability with long life.
• Great flexibility for specific solutions.
• Wide terminal box - easy installation. Brake rectifier included in motor terminal box.
• Standard connection of the rectifier, directly to motor terminals.
• Mounting in any position.
• With standard motors’ dimensions and output ratings.
• Technical, application and application support.
Brake features:
• High quality brake meeting industry standards.
• Compact design with torque from 5 to 235 Nm.
• Brake disc with low wear and maintenance.
• Easy installation.
• Non-stick friction material.
• UL certified.

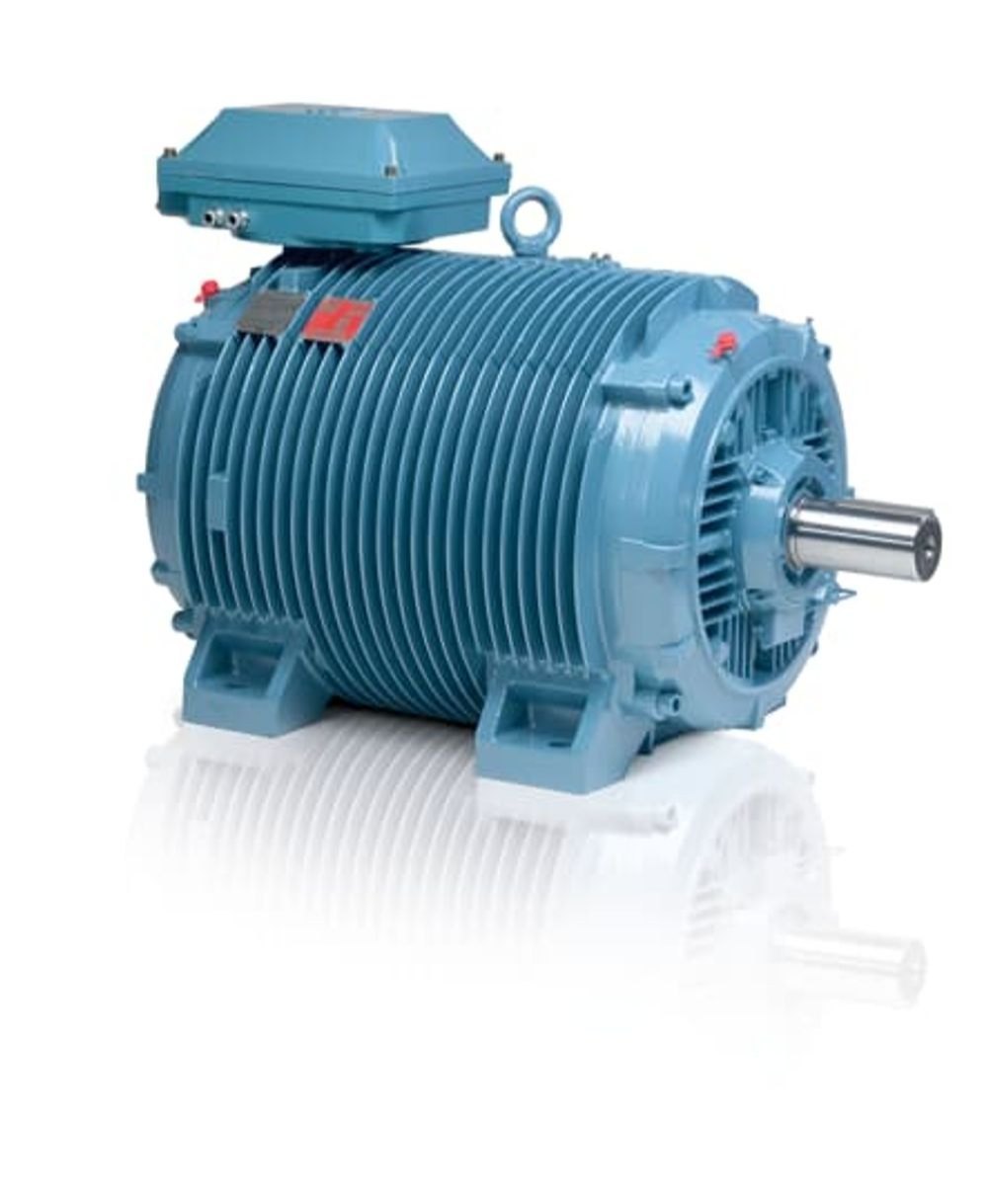

Roller Table Motors
Shaft heights-- M3RP 132-450
Output power-- 3.3 to 165 kW
Voltage-- 220 – 690 V
Effiency class-- IP55 with options up to IP66
Robust design:
• ABB Roller table motors are extremely rugged, with a strong housing that protects against impacts and falling debris.
• Designed to withstand high ambient temperature, humidity, water sprays, dust or other fine particles.
• The enclosure is IP55 rated as standard, with up to IP66 available as an option, ensuring that moisture and dust cannot enter.
• Stator frame can be pressurized with air to prevent any ingress of water or dust.
• ABB Roller table motors feature a non-ventilated design with vertical cooling ribs to ensure that no dust can collect on the surface and cause internal heating.
Highly customizable:
• ABB roller table motors are built on a flexible platform, ensuring they can be customized for an exact match with your process and needs, whether you require motors for working or transport tables.
• Wide range of options and accessories available including temperature sensors, encoders and brakes.
• Versatile connection solutions.
• Shaft: 132 to 450.
Customizable for any application:
• Our global network ensures we can provide reliable local support wherever you are – from sales experts with the technical know-how to help you select the optimal products to a full range of services aimed at maximizing performance.
• With 140 years of experience, we are a leading supplier of innovative, energy-efficient motor solutions, committed to optimizing performance and reducing energy use.
• ABB Roller table motors are easy to select, install, operate and maintain, we aim to make sourcing the right motors as simple as possible.

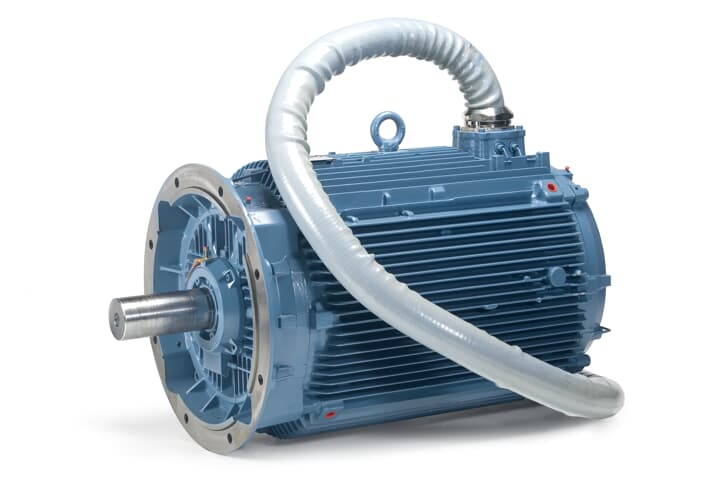

Smoke Extraction Motors
Smoke extraction motors are typically used in two types of applications - jet fans and axial fans - for both comfort ventilation and extreme cases by fire.
• Tunnels
• Single and multi-storey shopping malls
• Single and multi-storey industrial buildings and warehouses
• Stairways
• Enclosed car parks
• Theaters
• Other locations to mitigate the effects of a fire
Specifications:
• Tested at a third party laboratory in India for operation at 300°C 60 min, 250°C 120 min.
• Frame sizes-- 71 to 250, up to 55 kW
• Both horizontal and vertical mountings
• IP55 protection
• Insulation class-- H
• Temperature rise class-- B, F
• Cooling IC411 as standard, IC418 as option
• Grey aluminum painting
• Insulation suitable for high temperature applications
• Wide range of options like extended cables, PAD mounting
• Efficiency classes-- IE2, IE3

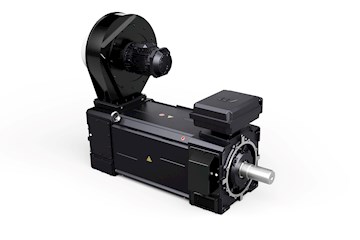

High Dynamic Performamce Motors
Key benefits:
Best motor range: Frame sizes range from 80 to 400 with outputs from 2 kW to 2,000 kW. No gaps in the torque range. Three different cooling arrangements.
Best motor design: Highest power density, lowest inertia and superb speed control.
Best drive performance: Matching with ABB drives ensures optimum motor control and machine maneuvering.
Best design flexibility: Modular design platform enables extensive customization capabilities.
Best customer support: Extensive portfolio of global and local services for OEMs and machine users.
Precise motor control: ABB can provide high-performance drive solutions comprising matching HDP motor and variable speed drive (VSD) for a wide variety of machine types, sizes and applications – whether for new designs or for retrofitting.
Specifications:
IP55 fan-cooled-- M3ET IEC frame sizes 80 to 355
IP23 blower cooled-- M3FT - IEC frame sizes 100-400
IP55 liquid-cooled-- M3LT - IEC frame sizes 80-180
Output power-- from 2.2 to 2000 kW
Voltage-- 400 – 690 V
Motors for Explosive Environment
Explore the world of ABB's unparalleled explosion-proof motors and generators, designed to ensure utmost safety and peak performance in challenging environments. These ATEX certified, high-performance solutions serve a diverse range of industries such as oil and gas, mining, and chemicals, offering customization to meet specific industrial needs. Discover how our focus on adhering to global safety standards, coupled with a commitment to reliability and durability, sets us apart. With ABB, experience the power of innovation in action.
• Expertly designed explosion-proof motors & generators.
• Products suited for industries such as oil and gas, mining, and chemical.
• Broad range of all protection types and levels.
• Dedicated project management for complex projects.
• Support through the whole lifecycle - project management to global certified service network.
