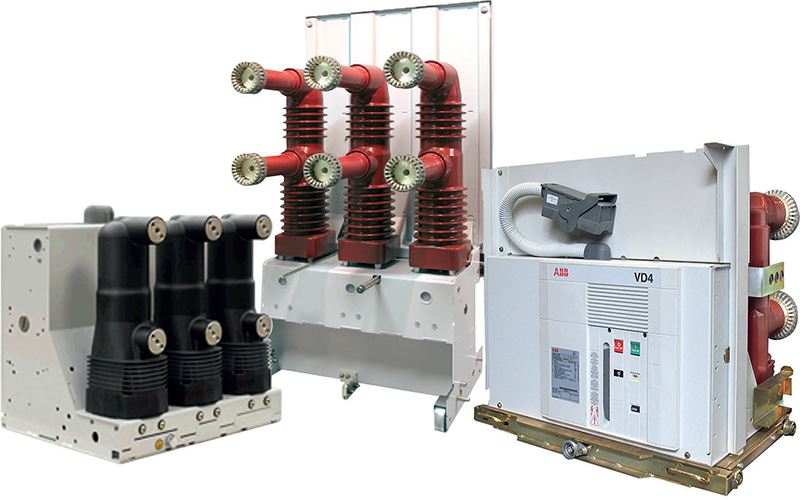

VD4 Medium Voltage Vaccum Circuit Breaker

• Vacuum circuit breaker for safe and reliable electrical power distribution or generation in your application up to 46 kV, 4000 A, 63 kA.
• Maximize output and productivity with devices that support the continuous operation of your processes, e.g. three times higher mechanical endurance than the standard.
• Protect assets with safe and reliable devices, e.g. generator circuit-breaker type tested to the new global dual logo standard (IEC/IEEE 62271-37-013).
• Optimize investments with compact devices and high performance, e.g. 17.5 kV/50 kA circuit breaker with 210 mm pole distance.

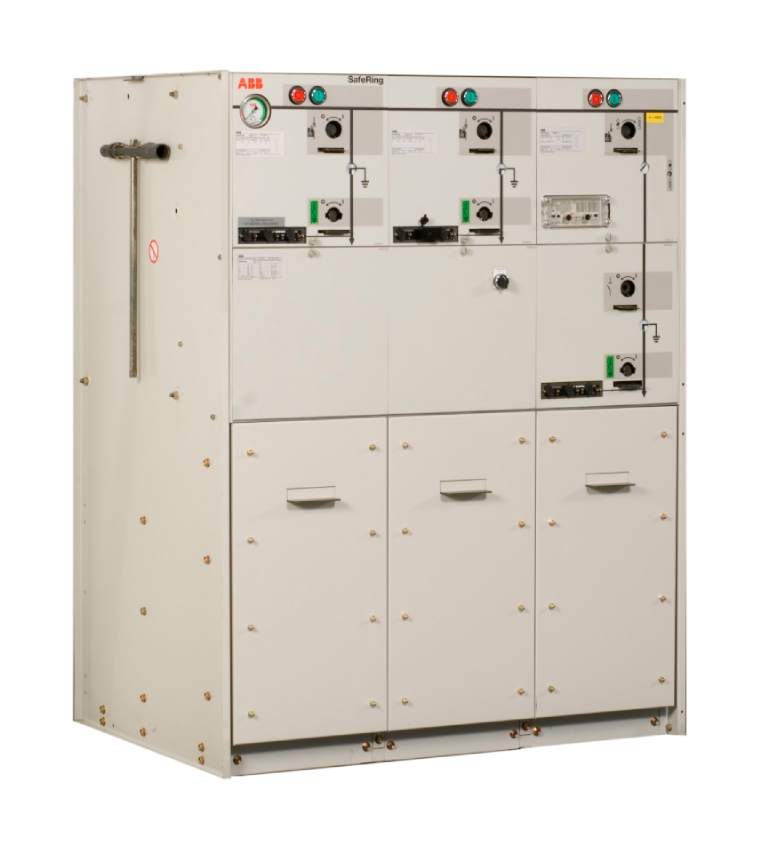

SafeRing / SafePlus 36 Gas Insulated Medium Voltage Switchgear

• ABB’s gas-insulated switchgear portfolio for secondary distribution includes the SafeRing ring main unit (RMU) switchgear designed for all indoor and outdoor applications including high altitudes (higher than 1500 m above sea level) and harsh weather conditions. It is fully compliant with IEC standards.
• SafeRing RMU is a compact standardized solution available in 18 different pre-defined configurations and suitable for most secondary switching applications within the range of 6kV to 40.5kV. SafeRing offers a choice of standard pre-defined configurations combining switch-fuses, line load break switches and circuit-breakers. The standard RMU configurations can be extendable upon request. A typical configuration includes the RMU with standard variants up to 5 modules (12-24kV) or 4 modules (36kV).

Protection Relays

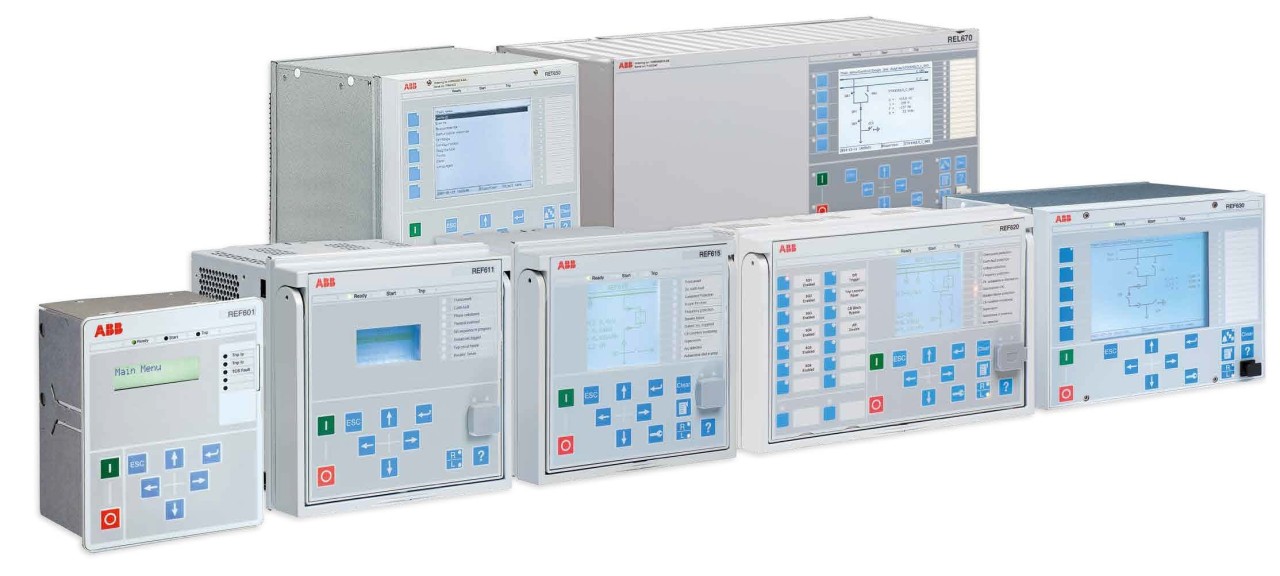

• Numerical relays are based on the use of microprocessors. The first numerical relays were released in 1985. A big difference between conventional electromechanical and static relays is how the relays are wired. Electromechanical and static relays have fixed wiring and the setting is manual. Numeric relays, on the other hand, are programmable relays where the characteristics and behavior can be programmed. Most numerical relays are also multifunctional.

• Scope:
   - Modern protection relays
   - Multifunctional protection

• Product benefits
   - Provide continuity of power to consuments
   - Protection of network assets
   - Protection against life-threatening electrical incidents

• Product features
   - Self-checking facility
   - Low burden relays improve accuracy
   - Fast fiber optical communication with substation LAN
   - Adaptive relaying schemes
   - Permit storage of historical data
   - Time stamping

Protection Relays Selection Table
Here you can refer ABB’s Numerical Relays portfolio and selection table by clicking here.

Protection Relays

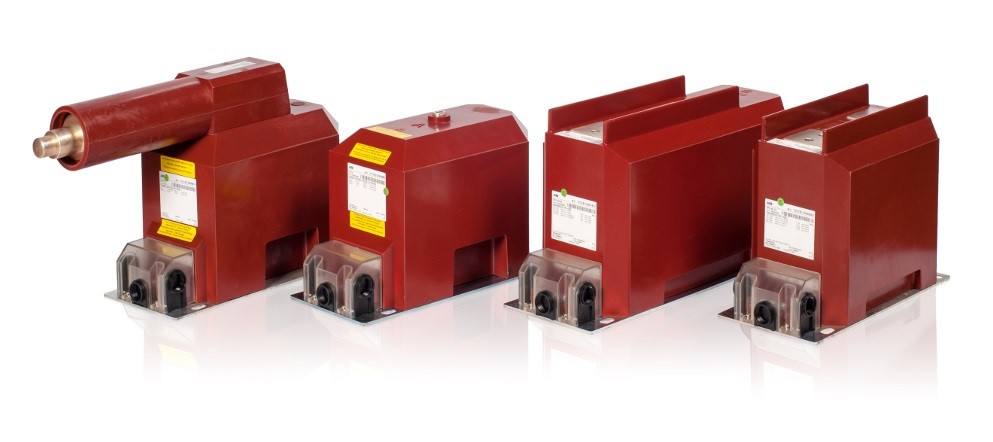

Current and voltage measurements from 0.6 kV to 52 kV for the protection and monitoring of medium voltage power systems.
   • 5A METERING - TAPE WOUND
   • 5A METERING – RESIN CAST
   • 5p10 - TAPE WOUND 5Amps
   • 5p10 – RESIN CAST 5Amps
   • 1A METERING - TAPE WOUND
   • 1A METERING – RESIN CAST
   • 5p10 TAPE WOUND 1Amps
   • 1A PROTECTION RESIN CAST
   • EPOXY CAST RESIN (Upto 33KV)

Power Transformers Upto 33KV (Uttam Bharat Make)

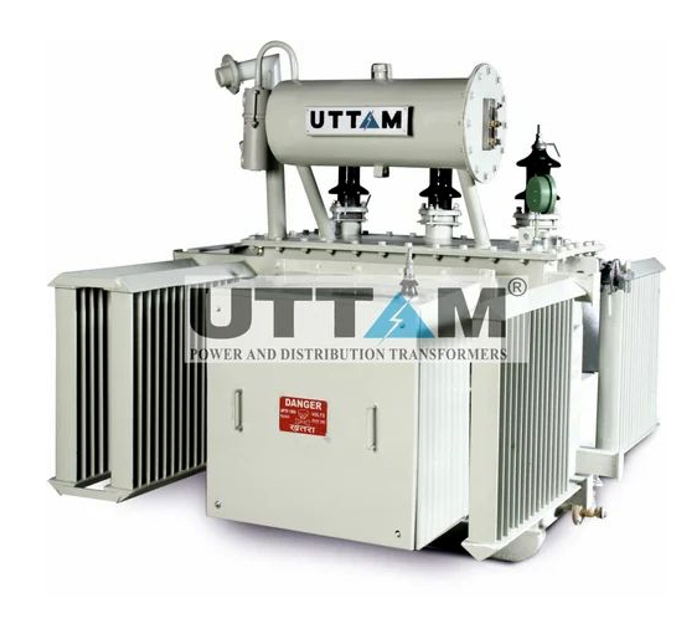

Three Phase Power Transformers Stack Core Type – Copper wound, outdoor/ indoor type, Step Down/ Step Up, Completely Self Protected – LV & HV transformers, connection options of Delta & Star Type as per Vector group ref. Dyn11 with rating range of 1000 kVA to 15000 kVA. UTTAM make power transformers have been installed at coal fields, power projects, housing projects, national level business houses, and individual manufacturing units.

Specifications:
Ratings Three Phase: CRGO – Upto 15000 kVa
Applicable Standards: IS, IEC, ANSI, JIS, DIN, BS Etc.
Cooling: ONAN, ONAF
Insulating Fluid: Ester Oil to specification
Frequency: 50 Hz, 60 Hz
Primary voltage: Upto 33000 V
Secondary Voltage: 22000, 11000 , 6600, 3300 V (Other Voltages as required)
Winding material: Copper
Taping range: Off circuit and On load tap changers as per customer specification

Distribution Transformers Upto 33KV (Uttam Bharat Make)

Distribution transformers are normally located at a service drop, wires run from a utility pole or underground power lines to a customer’s premises. They are often used for the power supply of facilities outside settlements, such as isolated houses, farmyards or pumping stations at voltages below 30kV. UTTAM make three phase distribution transformers are available in stack core / wound core upto 160kVA and stack core upto 3000kVA. They are made available in aluminium / copper as per requirement. On demand higher rating can also be offered.

Specifications:
Ratings CRGO : Upto 3000 kVA (higher rating can also be offered) Amorphous – upto 160kVA
Applicable Standards: IS, REC, CBIP, IEC, ANSI, JIS, BS etc.
Cooling: ON AN
Insulating Fluid: Ester Oil to specification
Frequency: 50 Hz, 60 Hz
Primary voltage: Upto 33 kV
Secondary Voltage: 415, 433 V (Other Voltages as required)
Winding material: Copper (upto 3000 kVA) / Aluminium (upto 800 kVA)
Taping range: ± 5% in steps of 2.5% (Other tapings as required)

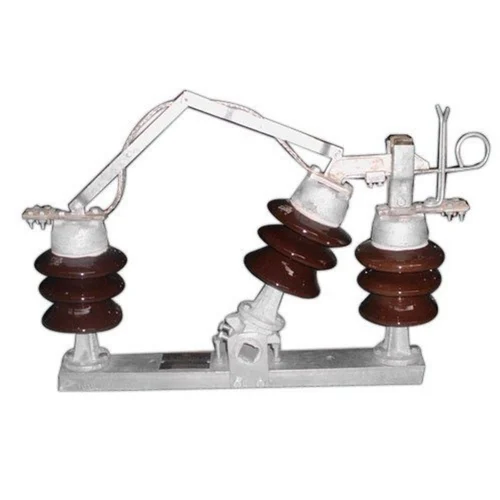

Our offered Load Break Switches are meant for outdoor application. These switches are suitable for horizontal or vertical mounting. It is used for electrical operations and power distribution. We offer Gang Operated Load Break Switchs upto 33KV designed for satisfactory performance in harsh atmospheric conditions of high/low temperatures & humidity.

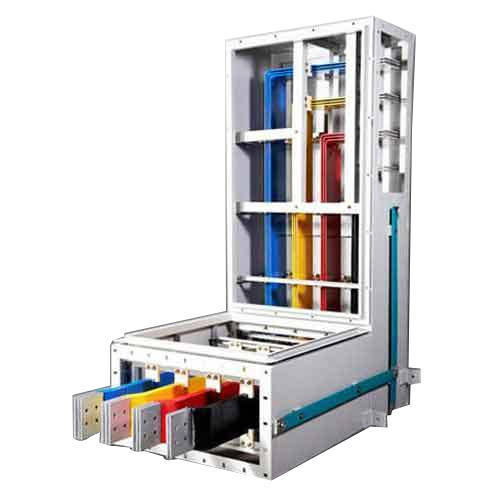

Segrigated Bus Ducts

Rated Continuous Current: 630A-5000A
Conductors: Aluminium / Copper
Rated Operational Voltage (Ue): 3.3kV – 33kV (AC)
Rated Short Time Withstand Current (Icw): up to 50kA (for 3 Sec.)
Enclosure Material: Aluminium Alloy
Rated Impulse Withstand Voltage (Uimp): 40kV – 170kV (1.2/50 µSec)
Degree of Protection: IP 55 / IP 65

Non-Segrigated Bus Ducts

Rated Continuous Current: 635A-6500A
Conductor: Aluminium / Copper

Busbar Configurations:
   • 3 Phase + 100% Neutral+50% Integral Ground Earth
   • 3 Phase + 100% Neutral+100% Internal Earth+50% Integral Ground Earth
   • Interleaved Design (RYBN-RYBN or RYB-N-RYB )
Rated Operational Voltage (Ue): 1000V (AC)
Rated Short Time Withstand Current (Icw): up to 100kA (for 1 Sec.)
Enclosure Material: Aluminium Alloy
Rated Impulse Withstand Voltage (Uimp): 12kV (1.2/50 µSec)
Degree of Protection: IP 55 /IP65

MV POWER CABLES

3.3Kv to 33Kv Grade- (BASEC/KEMA/CPRl/ERDA tested) three core Copper / Aluminium Conductor,Conductor screened with extruded semi-conducting compound, XLPE Insulated, insulation screened with semiconducting compound in combination with copper tape (0.3 KA for One Sec.), PVC ST2/FR/FRLSH/LSZH Inner Sheathed armoured/ GI Steel (Aluminium in case of single core) FLAT/Round Armoured and Overall PVC ST2/ FR/ FRLSH/ LSZH sheathed cable conforming to IS:7098/ll/85, IEC 60502-2/ BS 7835 From sizes 35 sq.mm to 1200 Sq.mm, above cables can be supplied with lead sheath whenever required.

MV SINGLE CORE POWER CABLES

3.3kv to 33kv grade-(BASEC/KEMA/CPRl/ERDA Tested) Single core copper /Aluminium Conductor, Conductor screened with extruded semi-conducting compound (11KV E & above), XLPE Insulated, Insulation screened with semiconducting compound (11KV E & above) in combination with copper tape , Unarmoured/ Aluminium Flat Strip / Round Wire Armoured and verall PVC ST2/ FR/ FRLSH/ LSZH sheathed cable conforming to IS:7098/ll/85, IEC 60502-2/ BS 7835 From sizes 35 sq.mm to 1200 Sq.mm above cables can be supplied with lead sheath whenever required.

LV POWER CABLES

Copper/Aluminium solid/stranded conductor, XLPE insulated, cores laid up, PVC inner sheathed, unarmoured/armoured, extruded PVC/PE /LSZH sheathed cables with rated voltage 0.6/1.0 kV from 1.5 mm² to 1000 mm² in 1/2/3/3.5/4 Cores confirming to BS 5467/BS 6724/IEC 60502-1
