General Purpose Drives

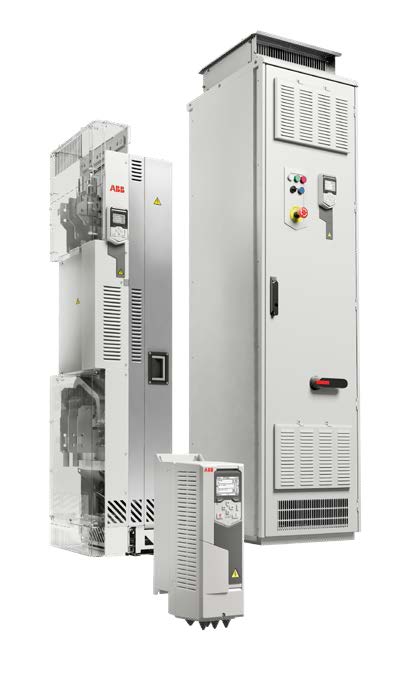

ABB ACS580 (0.75 to 500kW)
Highlights:
• Wall-mounted, drive modules and cabinet-built drives to control a variety applications.
• Easy to select, install and use.
• All essential features built into the drive.
• Straightforward settings menu and assistants for fast commissioning.
• Energy efficiency features for optimal energy management and support for energy efficient motors.
• Connectivity to most common automation networks and extensive selection of I/O options to match your needs.
• Member of ABB’s all-compatible drives portfolio.
• Adaptive programming for fine tuning and engineering the drive functionality.
• ATEX certified thermistor relay for potentially explosive environment (e.g., dust areas in F&B).
Features:
• Power range 0.75 to 500 kW (3-phase 380 to 415 V, 440 to 480 V, 200 to 240 V).
• Wall-mounted drives, IP21 as standard (UL type 1), IP55 as option (UL type 12 in frame sizes R1-R9).
• Drive module, IP00 as standard, IP20 as option.
• Cabinet-built drives, IP21 as standard, IP42 and IP54 as options.
• Assistant control panel as standard with primary settings and diagnostics menu with various assistants for effortless use of the drive.
• Integrated EMC C2 filter for domestic environments as standard in wall-mounted drives and cabinet-built drives for frames R6 to R9.
• Integrated EMC C3 filter for cabinet-built drives as standard.
• Built-in patented 2nd generation swinging choke for frames R10 and R11.
• Brake chopper as standard up to 22 kW (R3), optional for R10 - R11.
• Adjustable switching frequency control reducing motor audible noise.
Options:
- Wide range of fieldbus adapters and remote monitoring.
- Relay extension, PTC-thermistor, 115/230 V DI plug-in options, ATEX-certified PTC-thermistor, bipolar analog input.
- Free entry level PC tool with USB connection on control panel.
- Supports induction motors, permanent magnet motors and synchronous reluctance motors (SynRM).

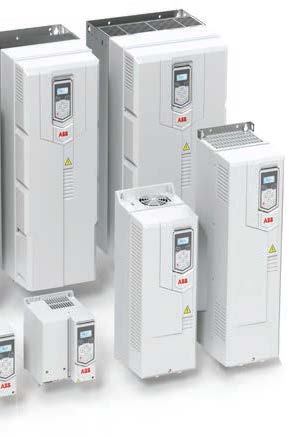

ABB ACS560 (0.75 to 160kW)
Highlights:
• Wide availability and support.
• All essential features built into the drive.
• Intuitive icon-based basic panel as part of standard delivery.
• Energy efficiency features.
• Built-in macros for application specific requirement for faster commissioning.
• Connect to any automation system with a single parameter.
• Engineered as ABB’s all-compatible drives portfolio.
Features:
• Wide power range upto 160kW.
• Coated circuit boards, colour coded I/O terminals, SIL3, PLe3 certified Safe Torque Off (STO) complying to environmental and safety needs.
• Ultra-fast commissioning with short cut menu icons without touching full parameter list.
• Built-in energy saving features such as energy optimizer and load analyzer.
• Built-in macros for many general-purpose applications such as fan, pump, mixer.
• Built-in Modbus RTU with one click configuration for quick PLC connectivity and auto configurable fieldbus modules.
• Built-in EMC filters and DC choke for reduced network pollution for all range of load and longer cable lengths.
Industrial Drives

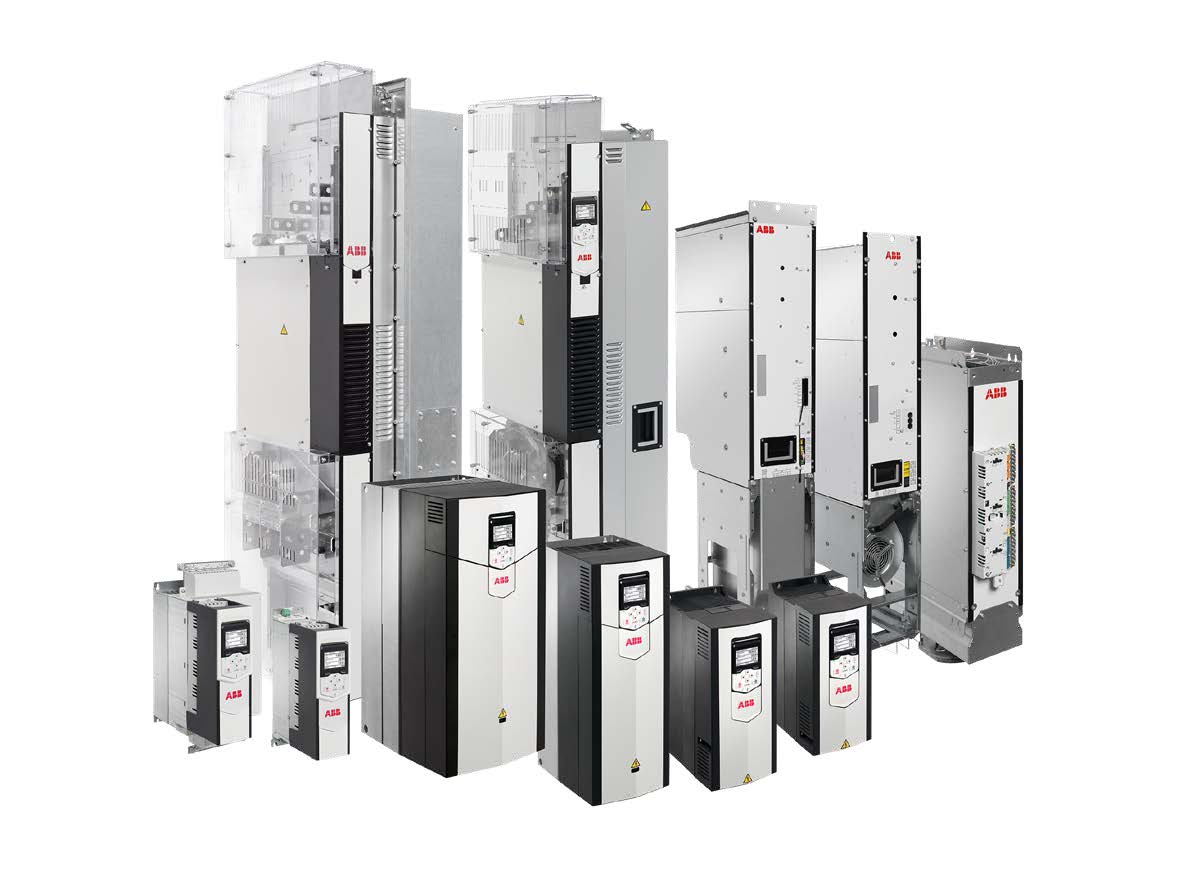

ABB ACS880 (0.55 to 6000kW)
Highlights:
• Compact wall-mounted drives with all important features built-in the drive, saving installation space and time.
• Premium motor control with direct torque control (DTC) for virtually any type of AC motor, including permanent magnet motors and synchronous reluctance motors (SynRM).
• A broad range of options offer flexibility and universal connectivity.
• Built on ABB’s all-compatible drives architecture providing unprecedented levels of compatibility, flexibility and ease-of-use.
Features:
• Power range 0.55 to 250 kW (208 to 690 V).
• IP21 as standard (UL type 1), IP20 and IP55 (UL type 12) as options.
• Supports optimized cabinet mounting (+P940 or +P944).
• Flange (push through) mounting option with separated control electronics and IP55 backside protection.
• Integrated safety including safe torque off (STO) as standard with several safety functions as options.
• Intuitive control panel with USB connection for PC tool and support up to 20 languages.
• Common PC tool, Drive Composer for commissioning and configuration.
• Drive-to-drive link for fast communication between drives including master-follower configurations without any additional software.
• Removable memory unit enabling fast replacement without compatibility issues.
• Drive’s energy efficiency information and the energy optimizer feature help to improve process efficiency.
• Marine type approved design.
• ATEX certified with ABB motors for explosive atmospheres.
• Application specific control programs, e.g., for position control, cranes, winders, etc.
• Drive application programming based on IEC 61131-3.
• Supports various motor types including synchronous reluctance motors and high speed motors.
Options include:
- I/O extension modules.
- Fieldbus adapter modules.
- Integrated safety features.
- Speed feedback interfaces.
- EMC filter, braking chopper.
Industry Specific Drives

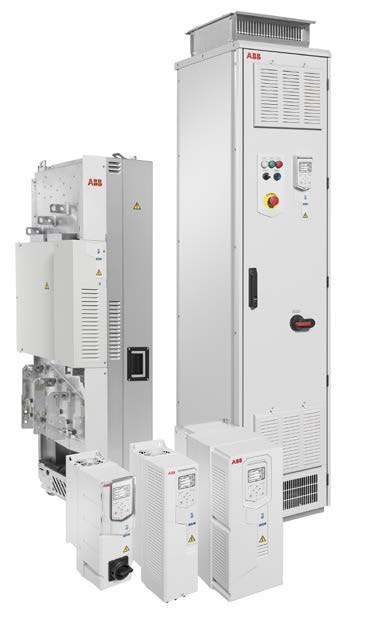

Drives for HVAC: ABB ACH580 (0.75 to 500kW)
Highlights:
• Complete set of HVAC functions.
• Multiple construction types and protection classes available.
• Simple to select, install and use - all the essential features are embedded.
• Seamless integration to applications and jobsites.
• Improved power quality performance.
• Widely available from ABB authorized partners and from ABB regional and central stocks.
Features:
• Power range 0.75 to 500 kW (3-phase 380 to 480 V), 0.75 to 75 kW (3-phase 200 to 240 V), 0.37 to 37 kW (1-phase 200 to 240 V).
• Wall-mounted drives: IP21 as standard, IP55 as option.
• Drive modules: IP00 as standard, IP20 as option.
• Cabinet-built drives: IP21 as standard, IP42 or IP54 as option.
• Public networks compliant with standard EMC C2 filter and built-in choke.
• Extendable I/O configuration, to cover the most demanding HVAC control needs.
• Controls various motor types like induction, PM and high efficient SynRM.
• User friendly operation with HVAC control panel.
• Optional Bluetooth enabled HVAC control panel.
• Embedded BACnet MS/TP, Modbus RTU and N2.
• Certified safe torque off (STO) as standard, for safe operation and maintenance.
• PID controllers for controlling even complex HVAC applications.
• Real time clock and built-in timers.
• Ultra-low harmonic drive variant to ensure reliable and efficient operation, even when the supply voltage is below nominal

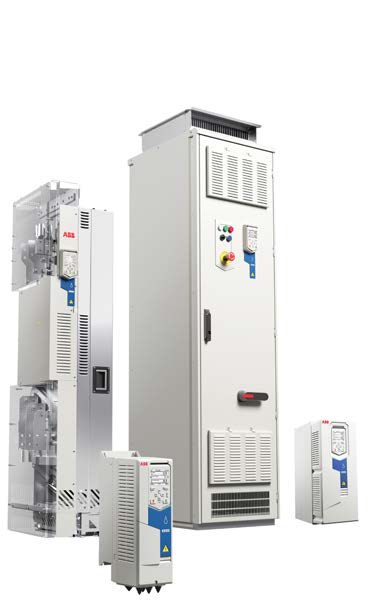

Drives for Water: ABB ACQ580 (0.75 to 500kW)
Highlights:
• Optimized efficiency of the water and wastewater process.
• Enhanced reliability with dedicated pump application functionalities.
• Proven performance in demanding environments with robust and compact drives offering.
• Seamless integration and operation with wide motor and communication protocol support.
• Easy to commission, configure and use with intuitive Hand-Off-Auto control panel that speaks pump language.
Features:
• Power range:
- 0.75 to 500 kW (3-phase 380 to 480 V).
- 0.75 to 75 kW (3-phase 200 – 240 V).
- 0.37 to 37 kW (1-phase 200 – 240 V).
• Ultra-low harmonic drives power range: - 4 to 355 kW (3-phase 380 to 480 V).
• Wall-mounted drives, IP21 as standard (UL type 1), IP55 as option (UL type 12).
• Drive module, IP00 as standard, IP20 as option.
• Cabinet-built drives, IP21 as standard, IP42 and IP54 as options.
• Built-in pump application program with Intelligent multipump functionality, Sensorless flow calculation, Level control, Soft pipe fill, Quick ramps, Pump cleaning and Pump protection functions.
• Adaptive programming.
• Intuitive and easy to use Hand-Off-Auto control panel available also with Bluetooth functionality.
• Built-in choke and EMC filter, category C2.
• Functional safety: Safe torque off (STO) as standard.
• Extended connectivity to I/O.
• Coated PCBs for humid and harsh environments

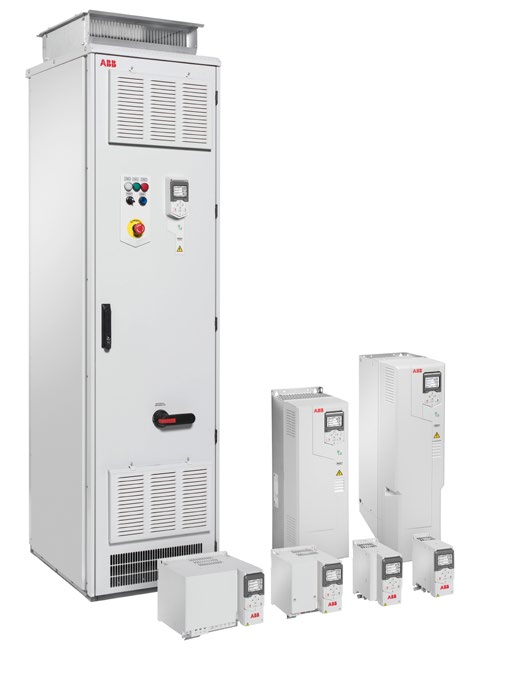

Drives for Solar: ABB ACQ80 (0.75 to 200kW)
Highlights and Features:
• Built-in best-in-class maximum power point tracking logic (MPPT).
• Widest band of DC operating voltage.
• Works on both DC solar panels and AC grid power source - pump at low sunlight or night time with AC grid or generator power.
• Advanced operating modes designed to reduce water wastage.
• Operates both induction and permanent magnet synchronous motors.
• In-built pump protection and flow calculation features.
• Compact cabinet design with quick and easy drive setup.
• Compatible with any remote monitoring system via Modbus RTU.
• Environmentally friendly solution for water pumping.
Machinary Drives

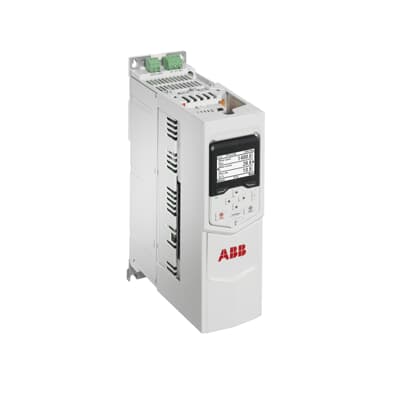

ABB ACS880-M04 (0.37 to 45kW)
Highlights:
• Excellent performance and compatibility with all kinds of machines.
• Comprehensive connectivity.
• Good possibilities for customizing the drive with IEC 61311-3 and adaptive programming.
• Cost and time savings with drive-based functional safety.
• Removable memory unit for fast drive replacement.
• Optimized for cabinet assembly.
• Top entry and bottom exit of the power cables enabling the optimal cabinet layout.
• Bookshelf design.
Features:
• Power and voltage range: 3-phase, 0.37 to 22 kW, 200 to 240 V AC.
• Power and voltage range: 3-phase, 0.75 to 45 kW, 380 to 500 V AC.
• Enclosure class: IP20.
• Integrated safe torque off (STO) as standard.
• Built-in braking chopper.
• Extensive I/O connectivity as standard.
Options:
- Extended connectivity to I/O.
- Speed and position feedback interfaces.
- Fieldbus adapter modules.
- Advanced control panel with USB or Bluetooth connectivity.
- Built-in/plug-in EMC filters for category C3, external EMC filters for category C2.
- Safety functions: SS1, SSE, SBC, SLS, SMS, SDI, SSM.
- PROFIsafe over PROFINET connectivity between drive and safety PLC.
- Application specific control programs including position control, tower crane, winder, etc.
- EC61131-3 programming.

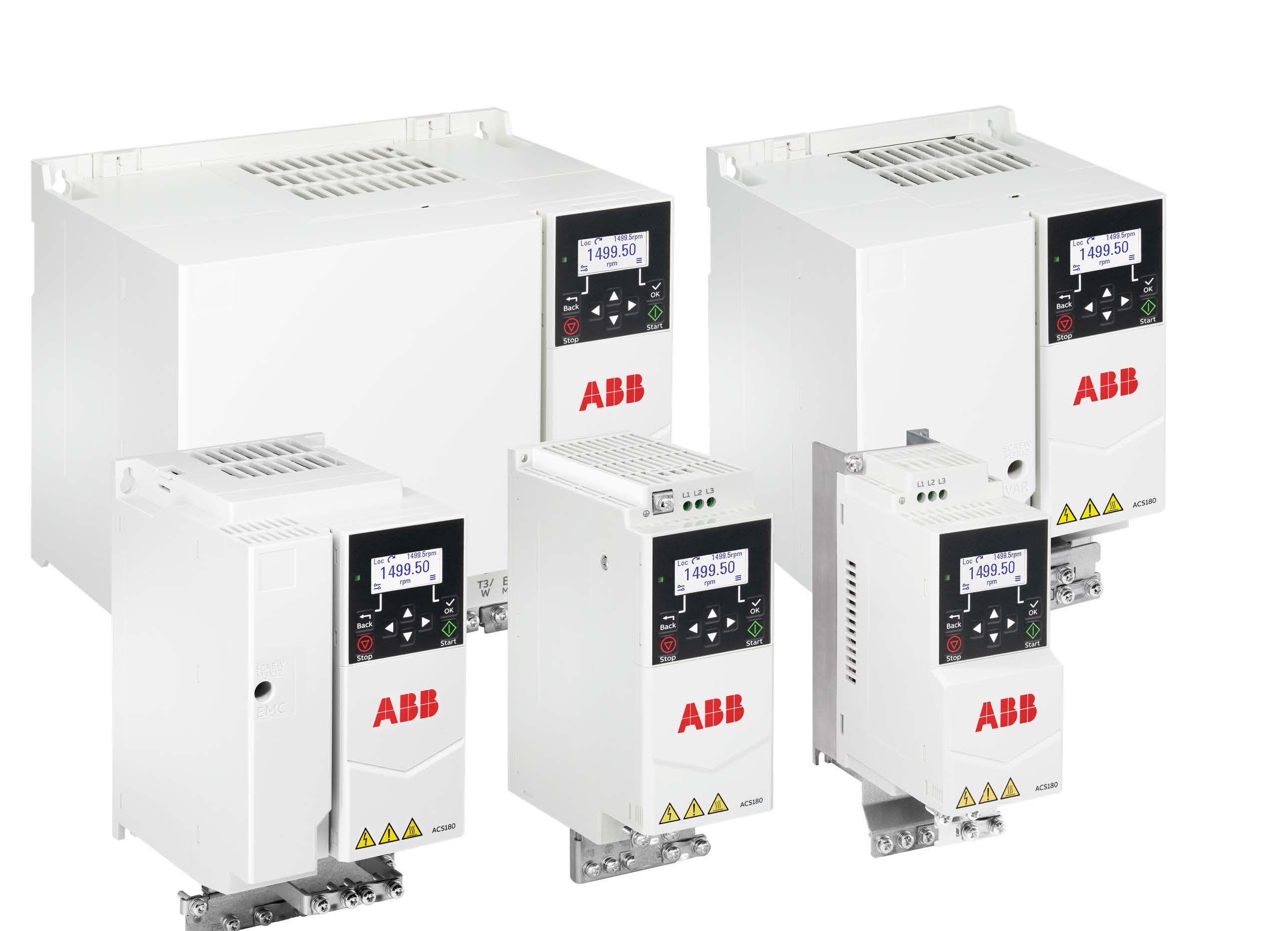

ABB ACS380 (0.37 to 22kW)
Highlights:
• Excellent motor control for various motor types including induction, permanent magnet and synchronous reluctance motors.
• Motor control performance with 3-phase current measurement meets demanding load profile requirements.
• Connects with all major industrial automation systems.
• Safe torque off (STO) is built-in as a standard, and can be controlled via PROFIsafe with an optional module.
• Adaptive programming for customizing the drive for a wide range of applications.
• Designed to last 10 years or more.
• Part of ABB all-compatible drives portfolio.
Features:
• Power and voltage range: 1-phase, 0.25 to 2.2 kW, 200 to 240 V, 3-phase, 0.25 to 11 kW, 200 to 240 V.
• Power and voltage range: 3-phase, 0.37 to 22 kW, 380 to 480 V.
• Enclosure class: IP20 as standard (optional UL type 1 kit).
• EMC categories C2 and C3 with an internal filter.
• Integrated safe torque off (STO) as standard.
• Standard variant with built-in Modbus RTU and extensive I/O connection.
• Integrated, icon-based control panel.
• Scalar control, open and closed loop vector control.
• Supports various motor types including induction, permanent magnet and synchronous reluctance motors.
• Adaptive programming with function blocks and sequence programs.
• Built-in braking chopper.
• Common DC connection with built-in charging unit.
Options:
- Fieldbus adapter modules.
- I/O extensions, encoder interface, 24 V auxiliary power.
- PROFIsafe (STO, SS1-t).
- Input chokes, du/dt filters.
- Advanced control panel with USB or Bluetooth connectivity.
ABB ACS180 (0.25 to 22kW)
Highlights and Features:
• The ACS180 is a compact, robust, and adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers.
• This is easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded.
• As a member of ABB’s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use

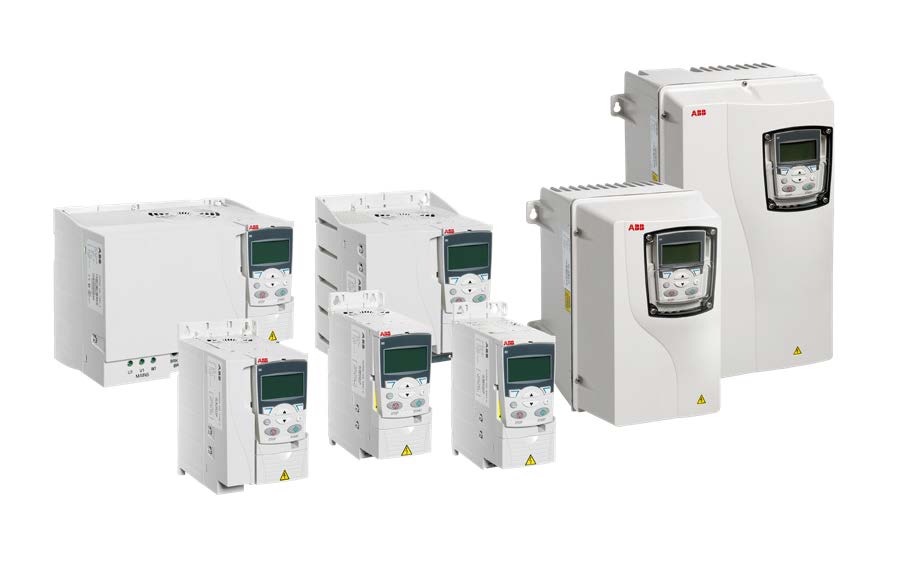

ABB ACS355 (0.37 to 22kW)
Highlights:
• A compact drive with a wide range of built-in features including safety functionality.
• Sequence programming provides an easy way to implement drive’s control logic.
• A wide range of options for enhanced performance and flexible connectivity to different processes.
• Compact dimensions with unified height and depth save space and facilitate cabinet installations.
Features
• Power and voltage range: 1-phase, 0.37 to 2.2 kW, 200 to 240 V, 3-phase, 0.37 to 11 kW, 200 to 240 V.
• Power and voltage range: 3-phase, 0.37 to 22 kW, 380 to 480 V.
• IP20 enclosure (UL open type), optional NEMA 1 kit.
• IP66, IP67 or IP69K (Nema 4X) as optional variant up to 7.5 kW.
• Advanced functionality with sequence programming.
• Scalar control, open and closed loop vector control.
• Induction and permanent magnet motor control.
• Built-in brake chopper and C3 EMC filter.
• Integrated safe torque off (STO) as standard.
• Product variants include solar pump drive, high speed application, and enhanced sequence programming.
Options:
- Basic and assistant control panels.
- Potentiometer, plug-in fieldbus adapters, encoder interface, relay output extension module, input and output chokes.
- External EMC filter for 1st environment.
- FlashDrop tool for unpowered drive configuration in 2 seconds.
Micro Drives
ABB ACS150 (0.37 to 4kW)
Highlights:
• The ACS150 drives are designed to be incorporated into a wide variety of machines such as mixers, conveyors, fans or pumps or anywhere where a fixed speed motor needs to run at variable speed.
• A more advanced micro drive with functions such as PID control and a built-in brake chopper.
• Integrated user interface and a speed control potentiometer.
• The drive is available for both single and three-phase supplies.
Features:
• Power range 0.37 to 2.2 kW (1-phase/ 3-phase 200 to 240 V).
• Power range 0.37 to 4 kW (3-phase 380 to 480 V).
• IP20 enclosure (UL open type), optional NEMA 1 kit.
• For basic machinery applications.
• Scalar control.
• Integrated user interface and potentiometer.
• Built-in brake chopper.
• Built-in C3 EMC filter.
Options:
- External C2 EMC filter.
- Input and output chokes.
- FlashDrop tool for unpowered drive configuration in 2 seconds.
Explore Our DC Drives

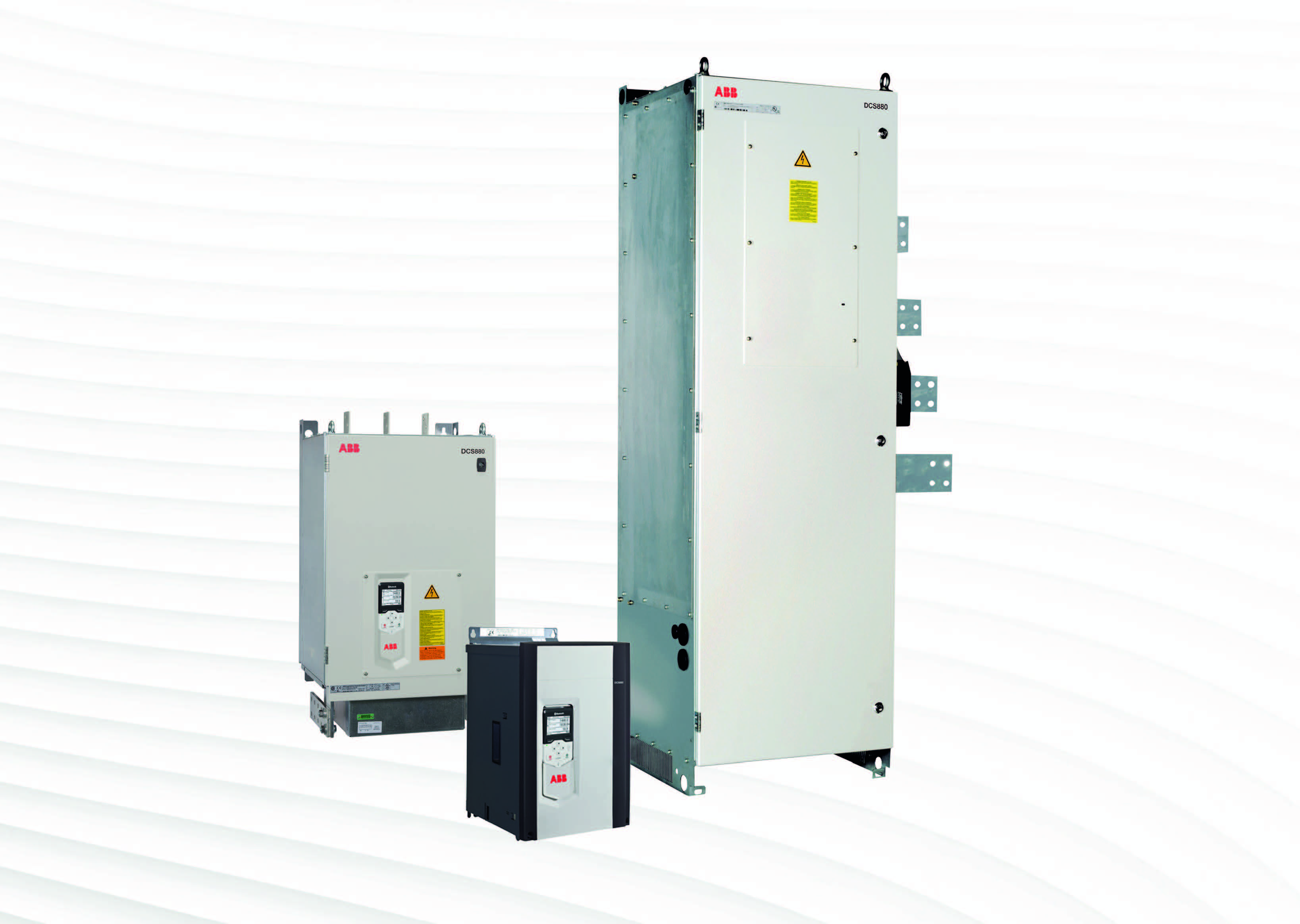

ABB DCS880 (20 A to 5200 A)
Highlights:
• High power density save space in existing installations.
• User-friendly due to start up assistance, auto-tuning functions and a multilingual assistant control panel.
• Flexible connectivity using a common PC tool Drive Composer and remote monitoring.
• Additional functions and features with IEC 61131 programming.
Features
• Power 10 kW up to 18 MW.
• 230 to 1200 V AC, 0 to 1500 V DC.
• 20 to 20000 A DC.
• Individually adaptable to customer requirements.
• High power solutions in 6- and 12-pulse up to 20000 A, 1500 V.
• Degree of protection IP21, IP22, IP31, IP42, IP54R.
• Built-in safety functions (e.g., STO/SS1)
Explore Our Servo Drives

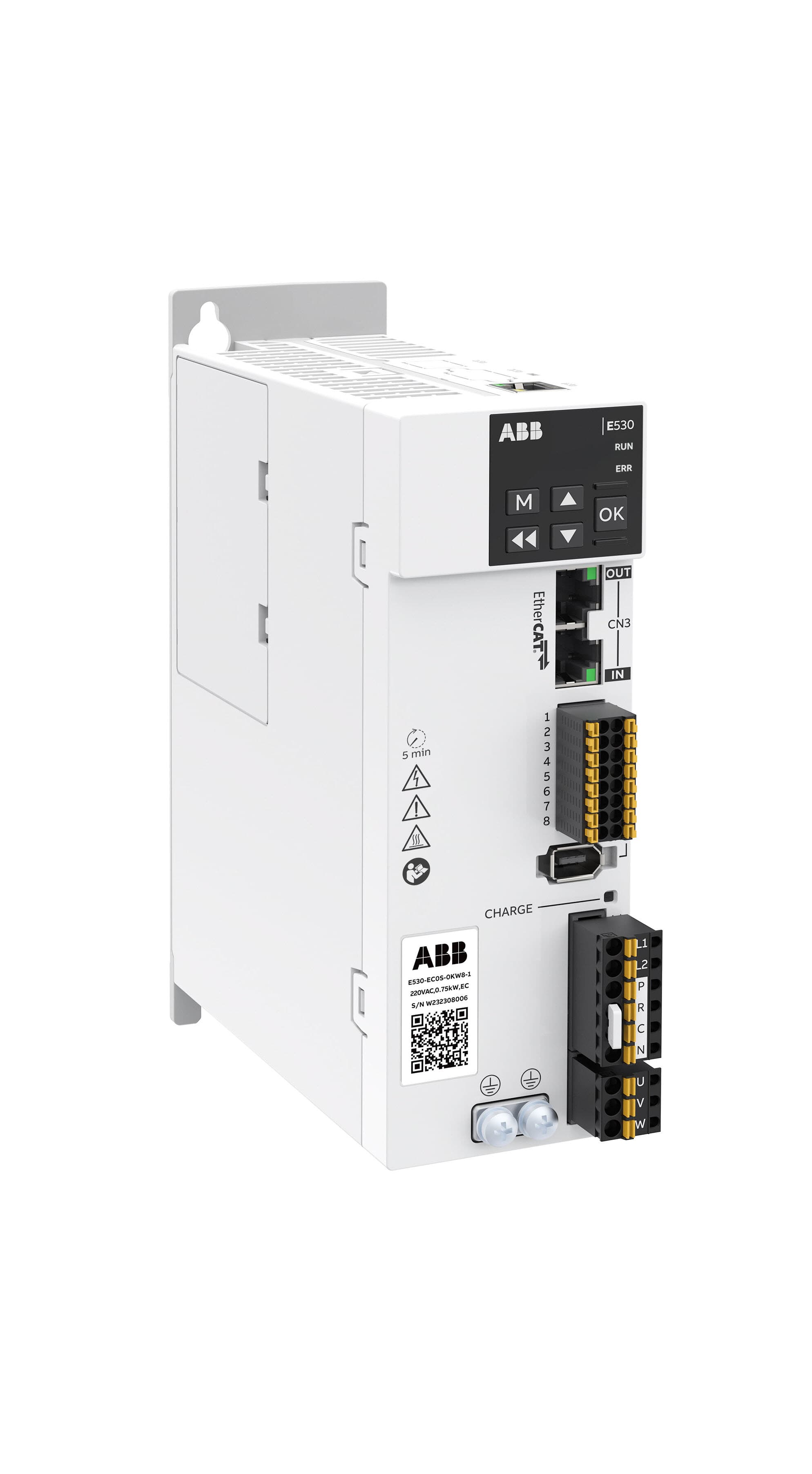

ABB E530
Highlights and Features
• The E530 servo drive is a general-purpose servo drive.
• The drive has two variants, pulse train input (E530-PT) variant and EtherCAT (E530-EC) variant.
• The E530-PT servo drive supports the pulse train input, analog input and Modbus TCP/IP protocol.
• The E530-EC servo drive supports the EtherCAT ptotocol.

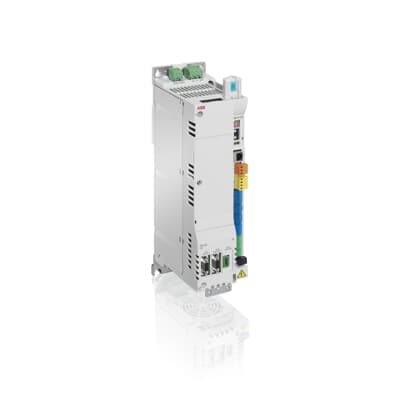

ABB Motiflex E180
Highlights:
• Versatile servo drives with integrated safety function for the three phase power network.
• Software selectable Ethernet protocols including EtherCAT, POWERLINK, Modbus TCP/IP, EtherNet/IP and PROFINET IO.
• Advanced motion programming language Mint for multitask controls such as communication, logic, motion and HMI interaction.
• Supports the HIPERFACE DSL one cable solution.
Features:
• Three phase operation voltage from 200 to 480 V AC.
• 200% and 300% overload capacity up to 3 s.
• Degree of protection IP20 for cabinet installation (UL open)
• Supports the protocols EtherCAT and POWERLINK via the ports E1 and E2, and supports the protocols EtherNet/IP, Modbus TCP/IP and PROFINET IO via the port E3.
• Suitable for single axis and multi-axis servo systems.
• Supports rotary and linear AC servo motors.
• Integrates the safe torque off (STO) function which complies with the standard EN61800-5-2.
• Supports the analog and PTO control modes.
• Supports the second input for dual feedback.
• Flexible options for function expansion- Various encoder adaptors for different kinds of encoders.
- AC chocks
- EMC filters
- External braking resistors
.png)

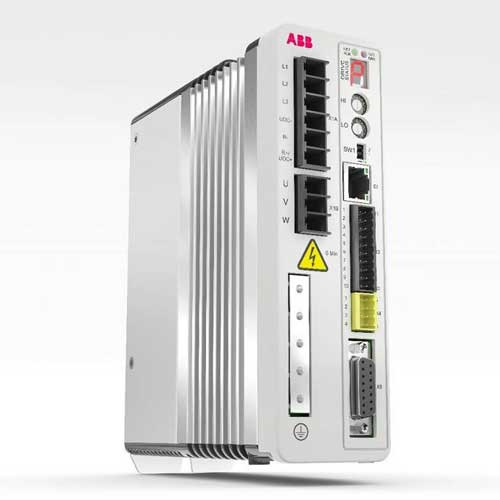

ABB Motiflex E190
Highlights:
• Compact servo drives with integrated safety function for the single/three phase power network.
• Software selectable Ethernet protocols including EtherCAT, POWERLINK, Modbus TCP/IP, EtherNet/IP and PROFINET IO.
• Advanced motion programming language Mint for multitask control such as communication, logic, motion and HMI interaction.
Features:
• Single/three phase operation voltage from 200 to 240 V AC.
• 200% and 300% overload capacity up to 3 s.
• Degree of protection IP20 for cabinet installation (UL open).
• Supports the protocols EtherCAT, POWERLINK and PROFINET IO via the ports E1 and E2, and supports the protocols EtherNet/IP and Modbus TCP/IP via the port E3.
• Suitable for single axis and multi-axis servo systems.
• Supports rotary and linear AC servo motors.
• Integrates the safe torque off (STO) function which complies with the standard IEC61800-5-2.
• Supports the analog and PTO control modes.
• Supports the second input for dual feedback.
• Integrated EMC bonding plate on the front panel makes it easy for grounding.
• Flexible options for function expansion.
- Resolver splitter OPT-MF-200.
- Resolver adaptor OPT-MF-201.
- IO Expansion option OPT-SIO-1.
- EMC filters.
- External braking resistors.
